Water Ring Die Plastic Recycling Machines

Water Ring Die Plastic Recycling Machines

$35,000.00

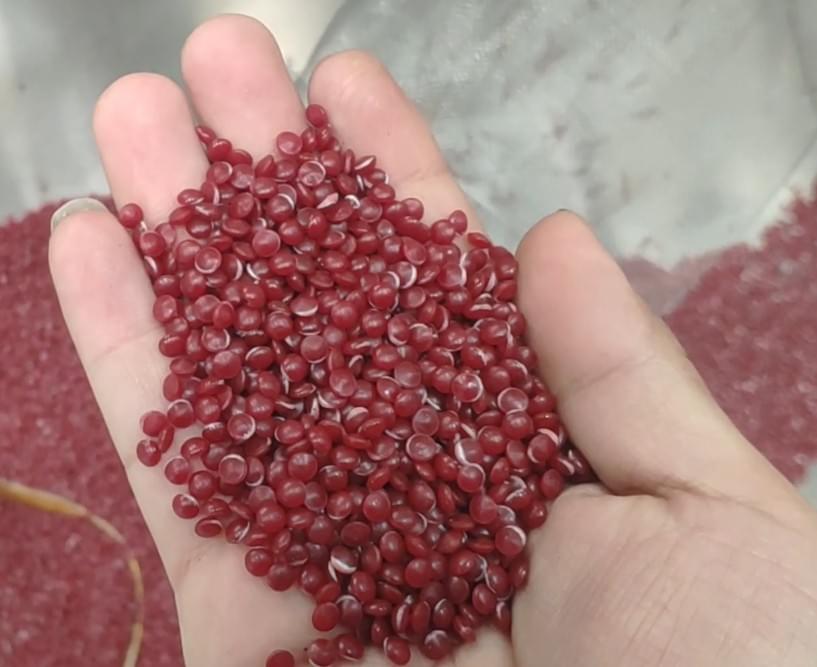

Machine is processing PE only ,with final pellet round shape and high quality.
suitable for film blowing producer and so on. Machine capacity from 100kg/h-500kg/hr.
Quantity
Coming soon
Coming soon
More Details

Machine Advantages



the material is fed into the hopper directly without the need for pre-heating before extrusion. When processing rigid regrind or compressed washed flakes (processed by a squeezer dryer), this system ensures a faster and easier machine starting and stopping process compared to other systems (for example, a machine with an integrated cutter compactor which requires pre-heating of the cutter compactor before machine start).
The rigid regrind (or film flakes) fed to the hopper feeder by a screw conveyor (or a belt feeder) are transported directly into the extruder without being pre-cut or compacted.

Water Ring Die Plastic Recycling Machines

Water Ring Die Plastic Recycling Machines



Flexible add-ons and Customization



  1. A screw conveyor or belt conveyor can be added to facilitate material feeding
  2. Silo can be added
  3. A crusher can be added for pre-crushing the material before entering the extruder.
  4. Unvented, single, or double degassing can be customized depending on material type and condition
  5. A vacuum degassing system and two-channel filter can be added to the machine
  6. Water ring die face cutting or strand die (spaghetti type) pelletizers are available depending on preference
  7. A metal detector can be added to the conveyor belt for additional protection

The Advantages of Plastic Recycling Machine



One Step, All-in-One direct recycling



Easy material feeding without the need for pre-cutting

Higher output capacity



Higher pellets quality



    The lower investment cost for a high-quality and durable machine

   Low energy consumption with a high production output

   Fast machine delivery and installation:

   The average delivery time of a Silver Python s( redstar T) recycling machine is 30 days.



     Specifications

Water ring die face cutting Plastic recycling machine

MODEL

CAPACITY (KG/HR)

SCREW (MM)

MOTOR  (KW)

SJH 120-120

100 KG/HR

120 MM

37KW

SJH 140-140

200 KG/HR

140 MM

55KW

SJH 160-140

300 KG/HR

160 MM

75KW

SJH 180-160

400 KG/HR

180 MM

90KW



Machine content

1 pc mother extruder , 1 pc water tank, 1 pc dewatering machine, 1 pc electric cabinet.

optional device:compactor
